UDOT uses Styrofoam blocks to build freeway ramp in Davis County

West Davis Highway using innovative construction material to build near railroad tracks

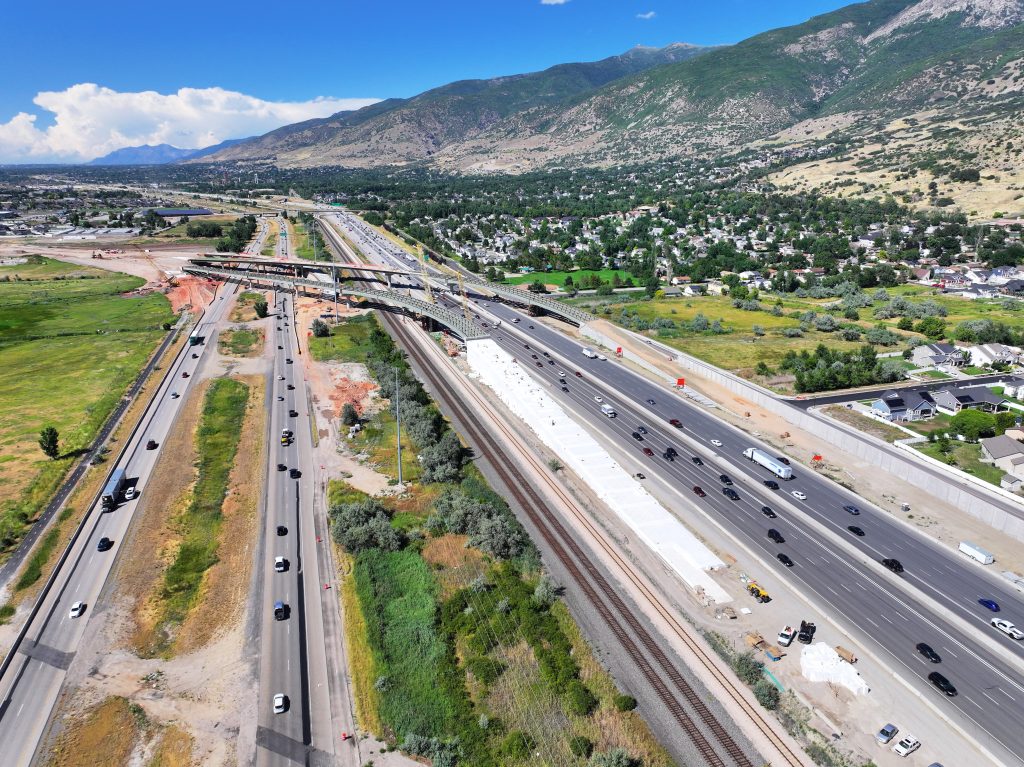

Aerial of geofoam ramp

The Utah Department of Transportation (UDOT) is using geofoam blocks — similar to the Styrofoam used in packaging materials and ice chests — to build a freeway ramp that will connect the future West Davis Highway with southbound I-15 in Farmington. These blocks allow crews to build the new ramp in close proximity to I-15 as well as the Union Pacific Railroad and Utah Transit Authority tracks without causing additional shifting or settlement.

“Sometimes there are unique challenges on our projects, and they require innovative solutions,” said Rex Harris, UDOT project director for the West Davis Highway. “Geofoam is another tool in our toolbox to efficiently build the roads, trails and bridges we all need to get where we want to go.”

The ramp to southbound I-15 is being built with approximately 3,000 geofoam blocks. Each one weighs about 200 pounds and measures approximately 4 feet by 5 feet by 9 feet. The blocks are brought to the construction site and then either placed as-is or cut to fit as needed. Once all the blocks are in place, a concrete slab is poured on top to evenly distribute the load of the ramp pavement and traffic, and concrete walls are installed along the sides.

The weight of using dirt to build the ramp would cause the ground underneath to settle anywhere from several inches to a few feet. This settlement is typical in construction, and engineers accommodate this settling with their designs. However, in this case, the close proximity of the existing interstate and rail lines meant they could be negatively affected by typical settling.

UDOT is one of a handful of state transportation departments in the U.S. with extensive experience using geofoam. Some notable projects that also used geofoam include the I-15 reconstruction in Salt Lake County prior to the 2002 Olympics; the 1100 South bridge over I-15 in Brigham City; and the 5600 West bridge near 700 South in Salt Lake City. The material was first used in road construction in Norway in the 1970s.

For the latest information on traffic restrictions during construction, visit the UDOT Traffic website or download the UDOT Traffic app for iPhone or Android. Follow UDOT on social media, including Twitter, Facebook and Instagram.

Aerial of Legacy, Railroad, I-15 and West Davis Interchange with geofoam ramp
